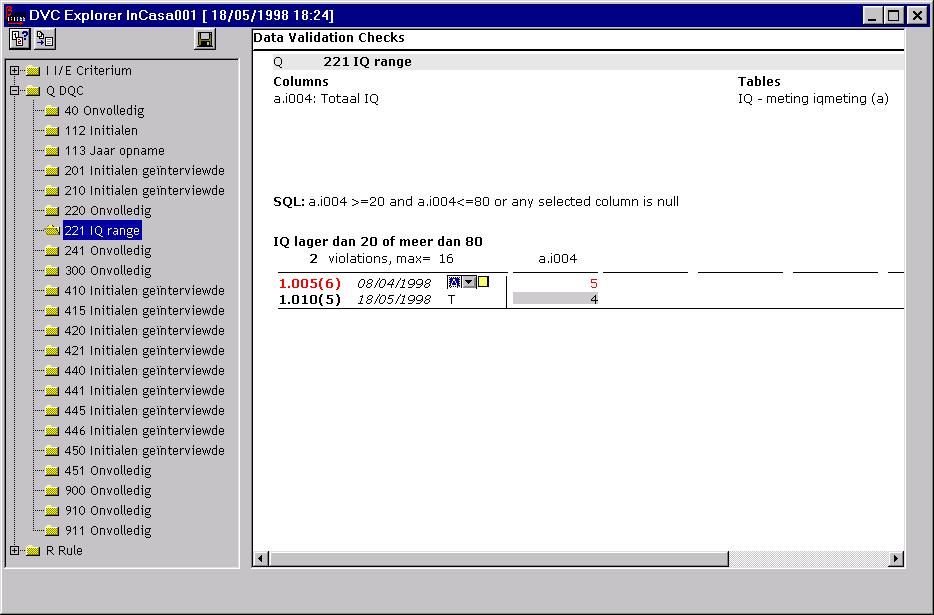

| Example of output in the DVC explorer of rule 221 |
This shows output from rule 221 i.e. IQ range. You can see that the rule checks whether the IQ is between 20 and 80 and it must the value must be entered. There are 2 violations out of 16 which have been checked. The violation of subject 1.005(6) has been marked as requiring attention from the data manager (see codes).
In the second column the date denotes the date the violation has been detected. The data from 1.010(5) have been changed since the last DVC, but are still not valid. This is denoted by the greyed first data column.
| Legend | |
| Columns | Gives the column(s) that are used in the SQL statement with alias (e.g. a.) |
| Tables | Gives the table(s) that are used in the SQL statement with alias (e.g. (a) ) |
| SQL | Gives a simplified form of the SQL statement that is executed. |
| [18/05/1998] | Date and time of last complete run (i.e. all statements) of DVC check. |
| Actions | |
| Double clicking on the sid, browses the explorer to the clicked subject. |
